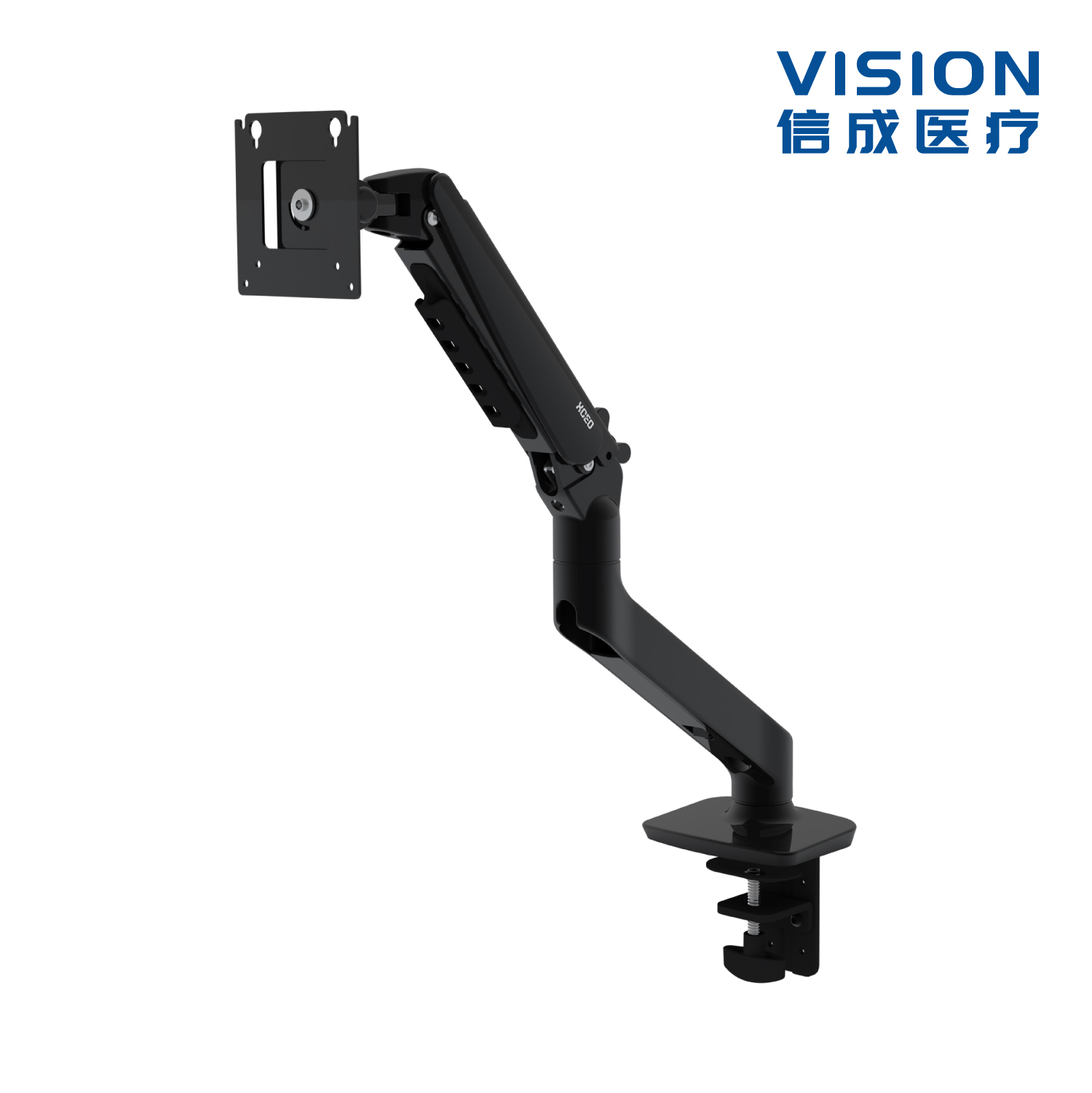

Ergonomic Support Arm - Mechanical Spring XC-ASMA2-006

1. Load Capacity Range: 1–5 kg.
2. Compatible Display Size: 17–27 inch monitors (subject to load capacity specifications).
3. VESA Standard: Compatible with 75 × 75 mm / 100 × 100 mm mounting patterns.
4. Spring Type: Mechanical spring.
5. Horizontal Extension Range: 343 mm (adjustable).
6. Vertical Height Adjustment Range: 255 mm (adjustable).
7. Rotation Range: 360°.
8. Arm Tilt Angle: Upward +50° / Downward -20°.
9. Monitor Plate Adjustment: Tilt angle +70° / -50°, swivel angle 90°, rotation angle 90°.
10. Lift Cycle Life: ≥20,000 cycles.
11. Cable Management: External cable management system.
12. Mounting Options: Desk clamp mount / grommet mount.
13. Materials: SPCC housing with side decorative covers, aluminum alloy, steel, and plastic components with antibacterial surface treatment.
14. Color: White (XC-White-005).
15. Extension Arm: 35° extension arm design.
16. Base Type: Single-monitor arm base.
