Introduction

Selecting the right endoscopy cart is critical for efficient GI procedures and patient safety. With various options available—from basic trolleys to advanced systems with integrated monitor arms—hospitals and clinics often struggle to identify which features truly matter.

This comprehensive guide walks you through the essential factors to consider when purchasing an endoscopy cart, helping you make an informed decision that aligns with your clinical needs and budget.

Table of Contents

1. What Is an Endoscopy Cart?

2. Key Features to Consider

3. Material and Build Quality

4. Compatibility with Endoscope Systems

5. Mobility and Stability

6. Storage and Organization

7. Budget Considerations

8. FAQ

What Is an Endoscopy Cart?

An endoscopy cart (also called endoscopy trolley or GI cart) is a specialized medical device designed to support endoscopic procedures. It provides:

• Stable platform for endoscope processors and monitors

• Organized storage for accessories and supplies

• Easy mobility between procedure rooms

• Cable management for a clutter-free workspace

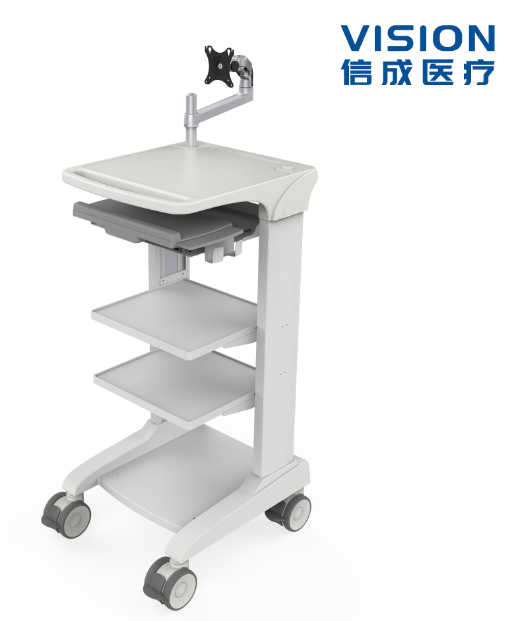

Alt: Endoscopy Cart EX600 featuring aluminum alloy support arm and dual-layer trays

Key Features to Consider

1. Monitor Mounting Options

Fixed VESA Mount

• Best for: Single monitor setups

• Example: EX700

• Limitation: Fixed position, no adjustment

Articulating Arm

• Best for: Adjustable viewing angles

• Example: EX600

• Advantage: Flexible positioning during procedures

Dual Monitor Mount

• Best for: Complex procedures requiring multiple displays

• Example: EX800

• Advantage: Enhanced visualization capability

Recommendation: Choose an articulating arm if your procedures require frequent position adjustments.

2. Load Capacity

Standard endoscopy carts should support:

• Minimum: 15 kg for processor and monitor

• Recommended: 20+ kg for future equipment upgrades

Our EX600 Endoscopy Cart features a 600mm aluminum alloy arm with 15kg+ load capacity, suitable for most Olympus and Pentax systems.

Material and Build Quality

Aluminum Alloy Frame

• Durability: Excellent

• Weight: Light

• Cost: Medium

• Best for: High-frequency use environments

Stainless Steel Frame

• Durability: Excellent

• Weight: Heavy

• Cost: High

• Best for: Sterile environments requiring frequent disinfection

Powder-Coated Steel Frame

• Durability: Good

• Weight: Medium

• Cost: Low

• Best for: Budget-conscious facilities with moderate usage

Surface Materials

• ABS injection-molded trays: Easy to clean, chemical resistant

• Stainless steel shelves: Maximum durability, autoclavable

• Powder-coated surfaces: Cost-effective, adequate for general use

Pro Tip: Look for carts with medical-grade casters (5-inch diameter minimum) for smooth movement across different floor surfaces.

Compatibility with Endoscope Systems

Ensure your cart is compatible with your existing equipment:

Major Endoscope Manufacturers

• Olympus - EVIS EXERA III, VISERA ELITE II

• Pentax - EPK-i7010, EPK-i5000

• Fujifilm - ELUXEO 7000, EPX-3500HD

• Karl Storz - IMAGE1 S, TELECAM

Compatibility Checklist:

• VESA mount pattern matches your monitor (75x75mm or 100x100mm)

• Shelf dimensions accommodate your processor unit

• Cable routing options suit your connection types

Mobility and Stability

Caster Specifications

Diameter: 5 inches (125mm)

• Benefit: Rolls over thresholds and floor transitions easily

Material: Medical-grade polyurethane

• Benefit: Quiet operation, non-marking, long-lasting durability

Braking: Dual-lock mechanism

• Benefit: Prevents unwanted movement during delicate procedures

Configuration: 5-wheel base

• Benefit: Enhanced stability, reduced tipping risk

Base Design Options

Vacuum-formed ABS base

• Characteristic: Lightweight with integrated weight blocks

• Advantage: Good stability with easier maneuverability

Steel frame base

• Characteristic: Solid metal construction

• Advantage: Maximum stability, ideal for heavy equipment setups

Storage and Organization

Equipment Trays

• Minimum 2 tiers for processor and accessories

• Adjustable height for customization

• Smooth surfaces for easy cleaning

Accessory Storage

• Integrated baskets for biopsy forceps, cleaning brushes

• Drawer options for sterile supplies

• Side hooks for cable management

Cable Management

• Built-in cable clips or channels

• Rear panel for power strip mounting

• Grommet holes for clean wire routing

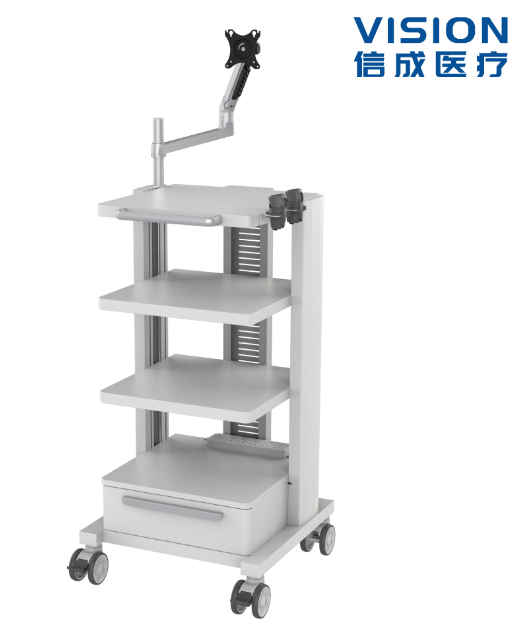

Alt: Endoscopy cart with organized storage trays and cable management system

Budget Considerations

Entry-Level: $300-$600

• Basic trolley design

• Fixed mounts only

• Minimal storage options

• Suitable for low-volume facilities

Mid-Range: $600-$1,200

• Adjustable components

• Monitor arm included

• Better quality materials

• Recommended for most hospitals

Premium: $1,200-$2,500

• Dual monitor capability

• Advanced ergonomic features

• Extensive storage systems

• Ideal for high-volume endoscopy centers

Total Cost of Ownership

Factor in:

• Warranty period (look for 3+ years)

• Availability of replacement parts

• Ease of cleaning and maintenance

• Expected service life (10+ years for quality carts)

FAQ

What is the standard size of an endoscopy cart?

Most endoscopy carts measure approximately 600mm (W) x 600mm (D) x 1400mm (H). However, compact models like our LD101 are available for space-constrained facilities.

Can I use any monitor with an endoscopy cart?

Most carts support standard VESA mounting patterns (75x75mm or 100x100mm). Verify your monitor's VESA compatibility before purchasing.

How often should endoscopy carts be cleaned?

Clean high-touch surfaces between procedures. Perform thorough cleaning and inspection weekly, following your facility's infection control protocols.

Do you offer custom endoscopy carts?

Yes. As an OEM/ODM manufacturer, Vision MedTech can customize cart dimensions, colors, and configurations to meet your specific requirements. Contact us for a consultation.

What warranty do you provide?

All Vision MedTech endoscopy carts come with a 3-year warranty on frame and mechanical components, with extended warranty options available.

Conclusion

Choosing the right endoscopy cart requires balancing clinical needs, compatibility with existing equipment, and budget constraints. Focus on build quality, mobility features, and storage options that match your procedure volume and workflow.

Ready to upgrade your endoscopy setup? Browse our complete range of endoscopy carts or request a custom quote for OEM/ODM solutions tailored to your facility.
